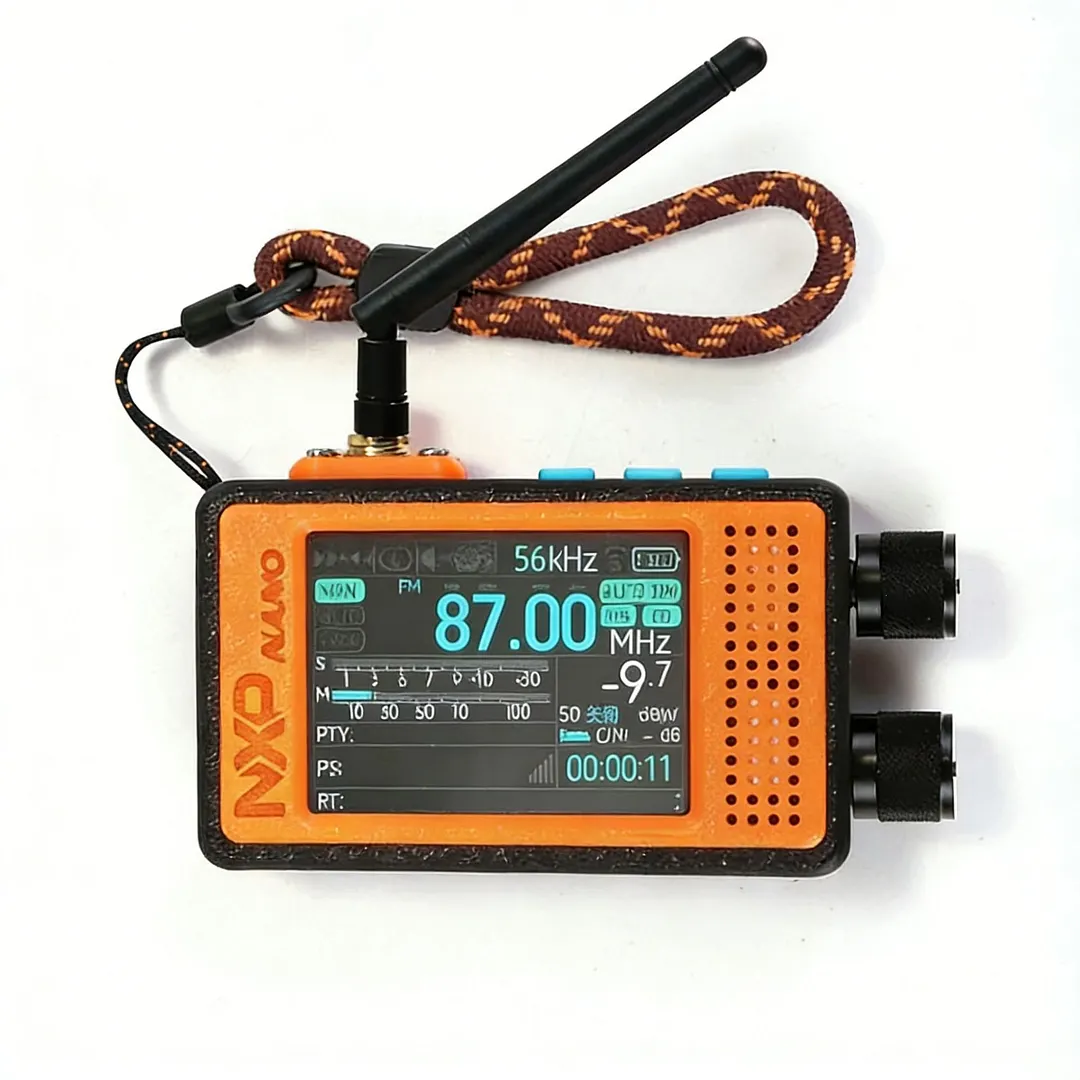

The NXP-NANO from HamGeek is an ultra-compact portable radio receiver based on the TEF6686 automotive-grade chip and the ESP32 controller. Designed for mobile listening enthusiasts (EDC), it offers exceptional reception on FM, LW, MW, and SW bands thanks to its advanced DSP architecture and color touchscreen.
- TEF6686 Chip: Automotive-grade sensitivity and selectivity.
- 2.4' IPS Touchscreen: Clear display and intuitive navigation.
- Wide Coverage: FM (65-108MHz), Longwave, Mediumwave, and Shortwave reception.
- Enhanced Audio: Integrated MAX97220 headphone amplifier for rich stereo sound.
- Robust Design: Impact and scratch-resistant PETG housing.
- Battery Life: 2000mAh lithium battery rechargeable via USB-C.
- Portability: Compact format ideal for everyday carry.
Comes with: 1 NXP-NANO receiver, 1 telescopic antenna, 1 USB-C charging cable.
I. Key Selling Points
NXP-NANO Ultra-Portable Full-Band Radio
- Automotive-Grade Chip, Top-Tier Reception Performance: Utilizes the NXP TEF6686 automotive-grade radio chip, paired with an ESP32 main control unit. High stereo separation in FM, strong anti-interference capability, providing excellent reception sensitivity in both urban and outdoor environments.
- 2.4-inch Full-View IPS Touchscreen: Say goodbye to the "dead angle" of traditional LCDs. Equipped with a high-brightness IPS touchscreen, it supports direct frequency input, making tuning faster, more accurate, and more elegant than traditional rotary knobs.
- EDC Ingenious Design: Exclusive original black and orange color scheme, measuring only 8.5*5.3*2.1cm, exquisitely compact. Utilizes a PETG sandwich structure shell, which is more scratch-resistant, impact-resistant, and less prone to aging than ordinary PLA material, making it easy to carry.
II. Audio and Auditory Experience
Dual-Cavity Stereo: Two independent speaker chambers are located on the right side of the front panel, delivering loud sound and clear mid-to-high frequency performance.
Hi-Fi Headphone Amplifier Output: Built-in MAX97220 headphone amplifier chip, 3W Class AB amplifier. When 3.5mm headphones are plugged in, the bass is powerful and comfortable, providing an immersive FM stereo experience.
Flexible Audio Expansion: Supports 3.5mm audio output, suitable as a high-quality desktop audio source.
III. Superior All-Band Reception Capability
FM: 65 - 108 MHz
Longwave (LW): 144 - 519 kHz
Medium Wave (MW): 522 - 1710 kHz
Shortwave (SW): 1.8 - 27 MHz
Airborne Band: 118 - 127 MHz (Note: Airborne band requires a frequency converter and can receive air traffic control signals)
IV. Battery Life and Charging
Long-lasting Battery Life: Built-in 2000mAh lithium battery provides approximately 6 hours of playback at normal headphone volume.
Fast and Convenient Charging: Supports Type-C fast charging input, features built-in charging power management, and is compatible with mobile phone chargers, ensuring worry-free travel.
V. Specifications
Product Model: NXP-NANO
Main Control Chip: ESP32 + TEF6686
Screen Specifications: 2.4-inch IPS Full-View Touchscreen
Shell Material: PETG (Scratch-resistant, wear-resistant, aging-resistant)
Product Dimensions: 85mm × 53mm × 24mm
Output Power: 3W (Class AB Amplifier)
Headphone Amplifier Chip: MAX97220
Power Interface: TYPE-C (Fast Charging Input)
Battery Capacity: 2000mAh Lithium Battery
VI. Applicable Scenarios
Radio Enthusiasts: Professional-grade receiving performance, meeting frequency sweeping and station listening needs.
EDC Enthusiasts: Exquisite, compact, and robust, with unique color schemes, perfect for everyday use.
Outdoor Camping/Travel: Small size, long battery life, suitable for listening to weather forecasts and music.
Desktop Speakers: Supports audio output, serving as a high-quality desktop radio.
